Plug-n-Fire

• KEY SPECS

  • 8" X 8" X 9" home and test kiln (Cone 10 on 120 volts, 15 amps)

    • Small
      (0.33 cubic feet)
    • Genesis Mini Touchscreen Control
    • Cone 10, 2350F, 1290C

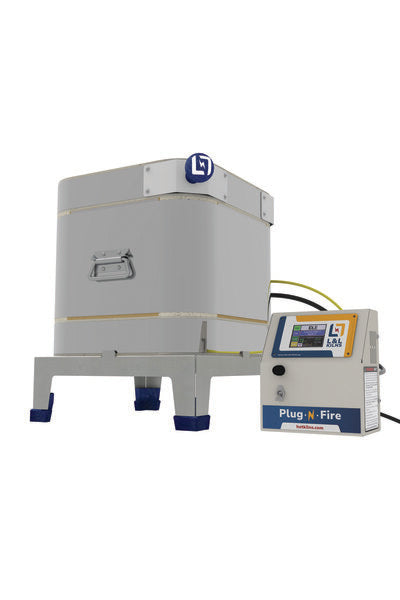

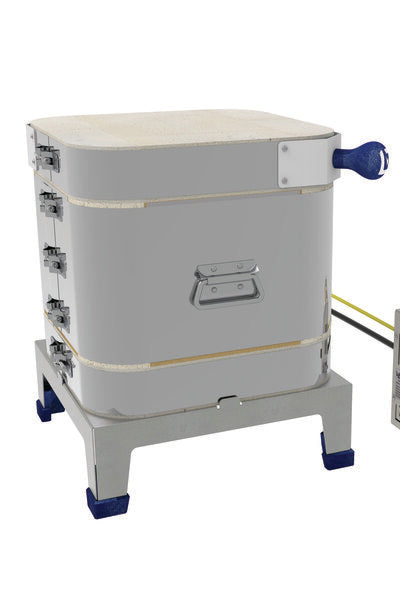

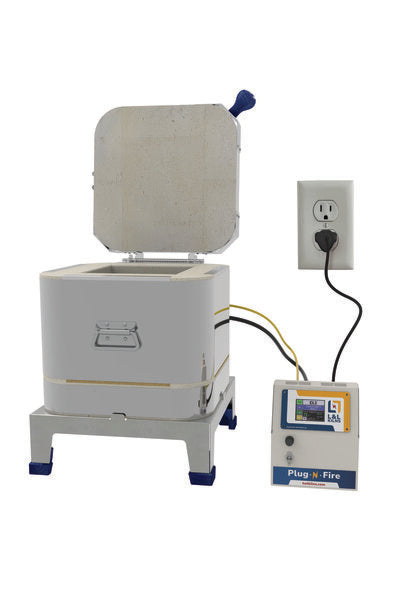

Model PF8 Craft/Test Kiln with a Genesis Mini Touchscreen Controller

• 8" Square x 9" High (0.33 cu ft)
• This kiln can fire to Cone 10 on most standard 15-amp circuits, and draws only 12.5 amps
• Extra-insulated sides with 2-1/2" K23 brick and 1" of backup insulation; Top & Bottom are 3" K23 brick

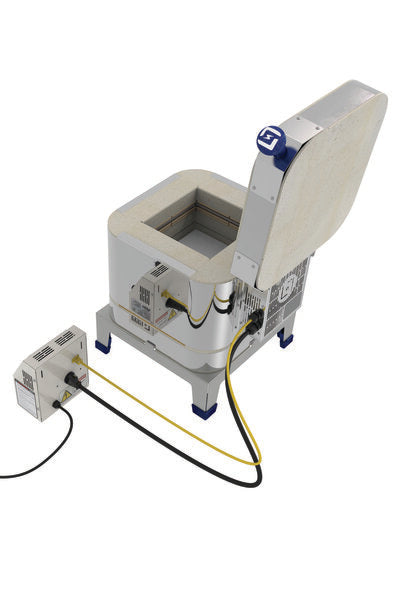

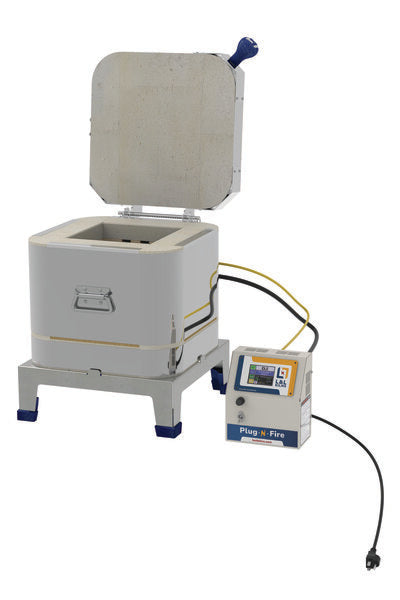

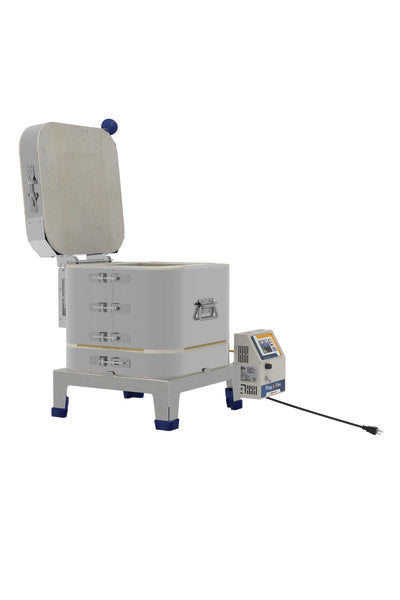

• Kiln plugs into a separate control panel with power and thermocouple wire jack
• Door safety switch shuts off power to the elements when the door is opened

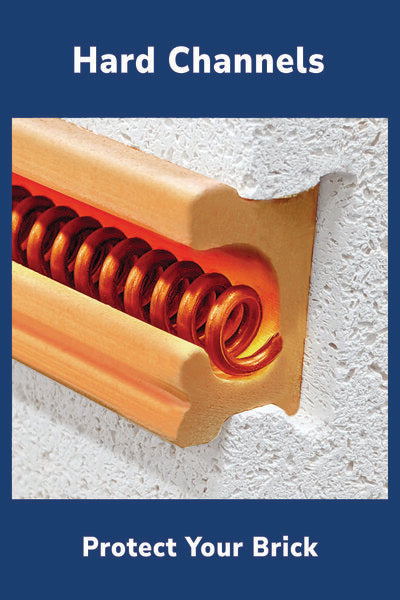

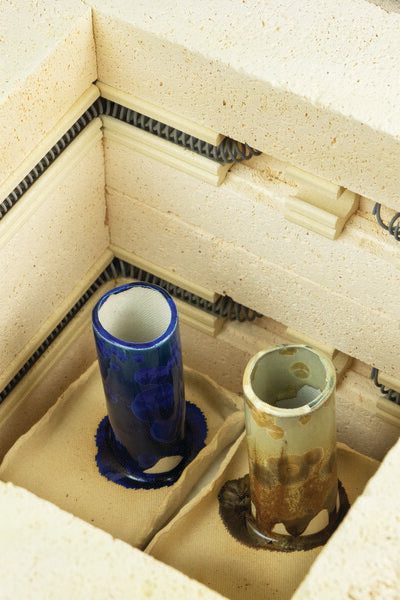

• Hard ceramic element channels
• Includes one 7" by 7" by 3/8" shelf and three 3" posts
• C-ETL-us Listed to UL499 and Canadian Standards
• On-Line Instructions

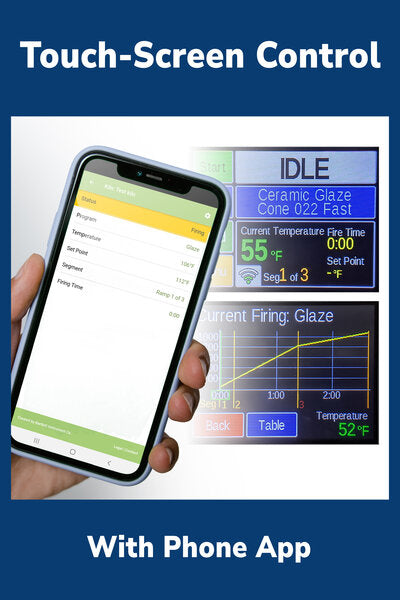

• Includes Genesis-Mini Touchscreen Control
• Extra furniture kits available for purchase HERE

Insulation: 2-1/2" K23 Firebrick & 1" 1900 Back-Up Insulation on sides, 3" K23 Firebrick on top & bottom

Sections: One section

Inside Dimensions: 8.00" wide x  8.00" deep x 9.00" high (20.32 cm Wide x 20.32 cm Deep x 22.86 cm High)

Outside Dimensions: 16.00" Wide x 19.00" Deep x 20.00" High (40.64 cm Wide x 48.26 cm Deep x 50.8 cm High)

Weight: 77lbs (35 kg)

If not in stock lead time can vary between 10-12weeks
