E18M-3: Easy Fire Kiln

• KEY SPECS

  • Small (3.2 cubic feet)
  • Genesis Multi-Zone Touchscreen Control
  • Cone 10, 2350F, 1290C

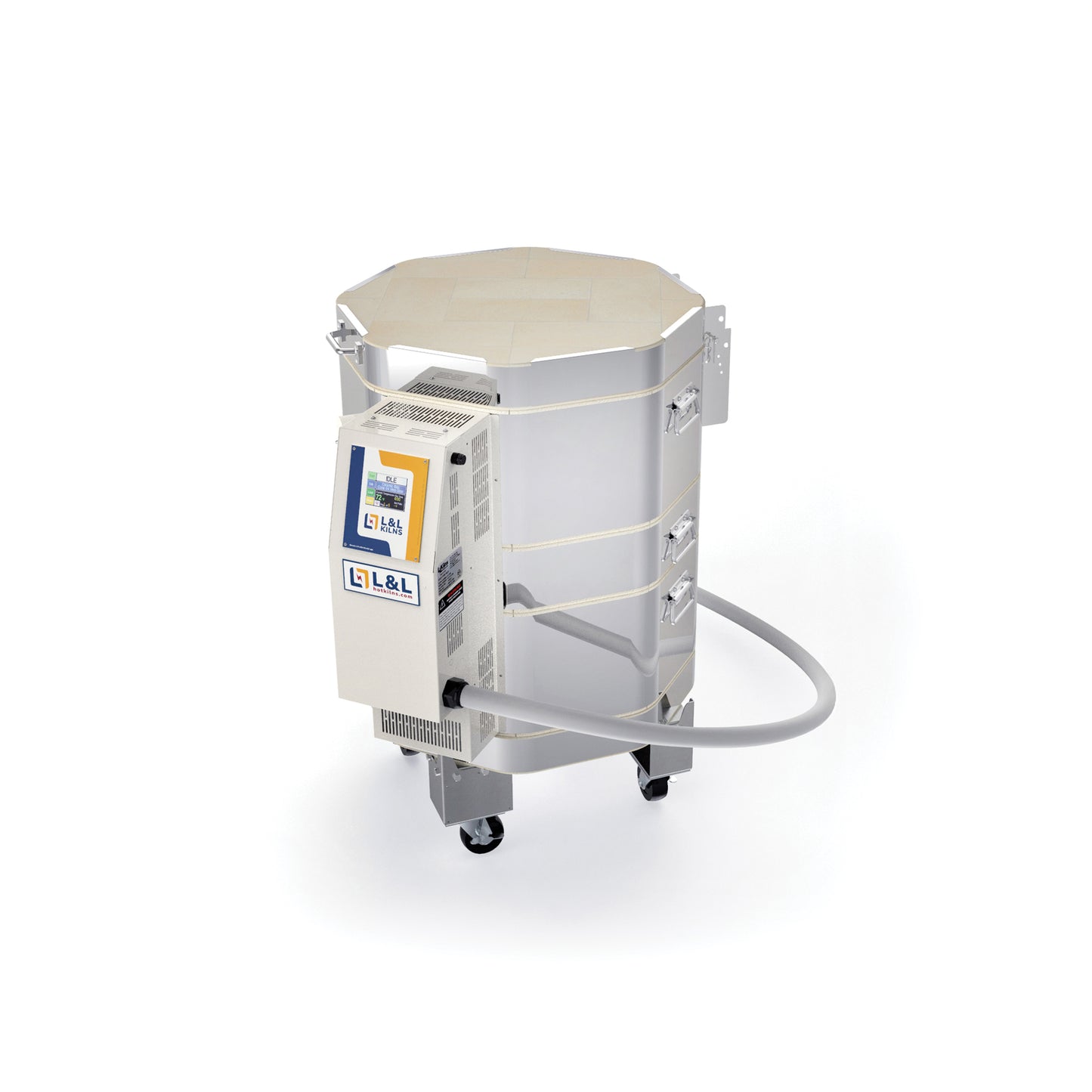

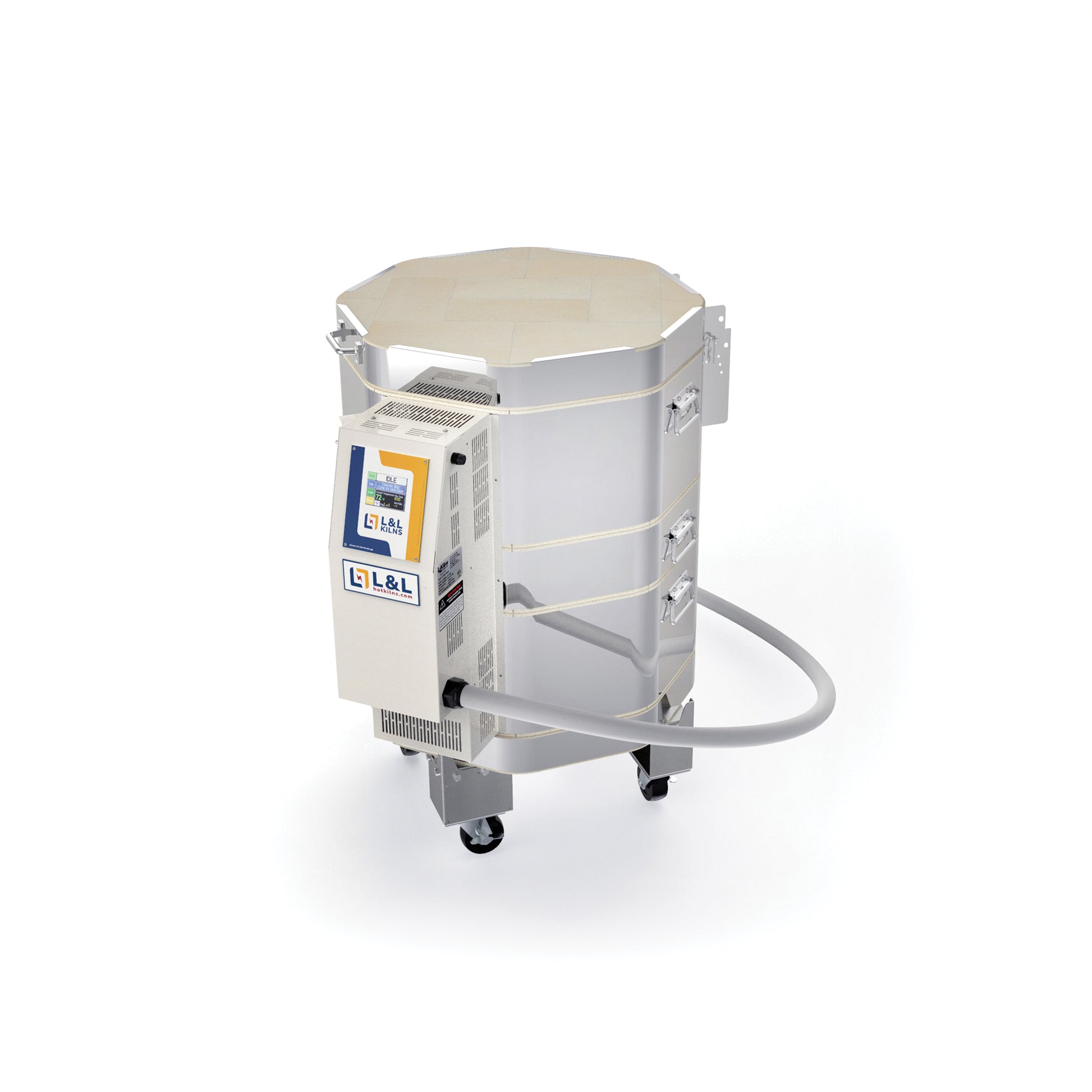

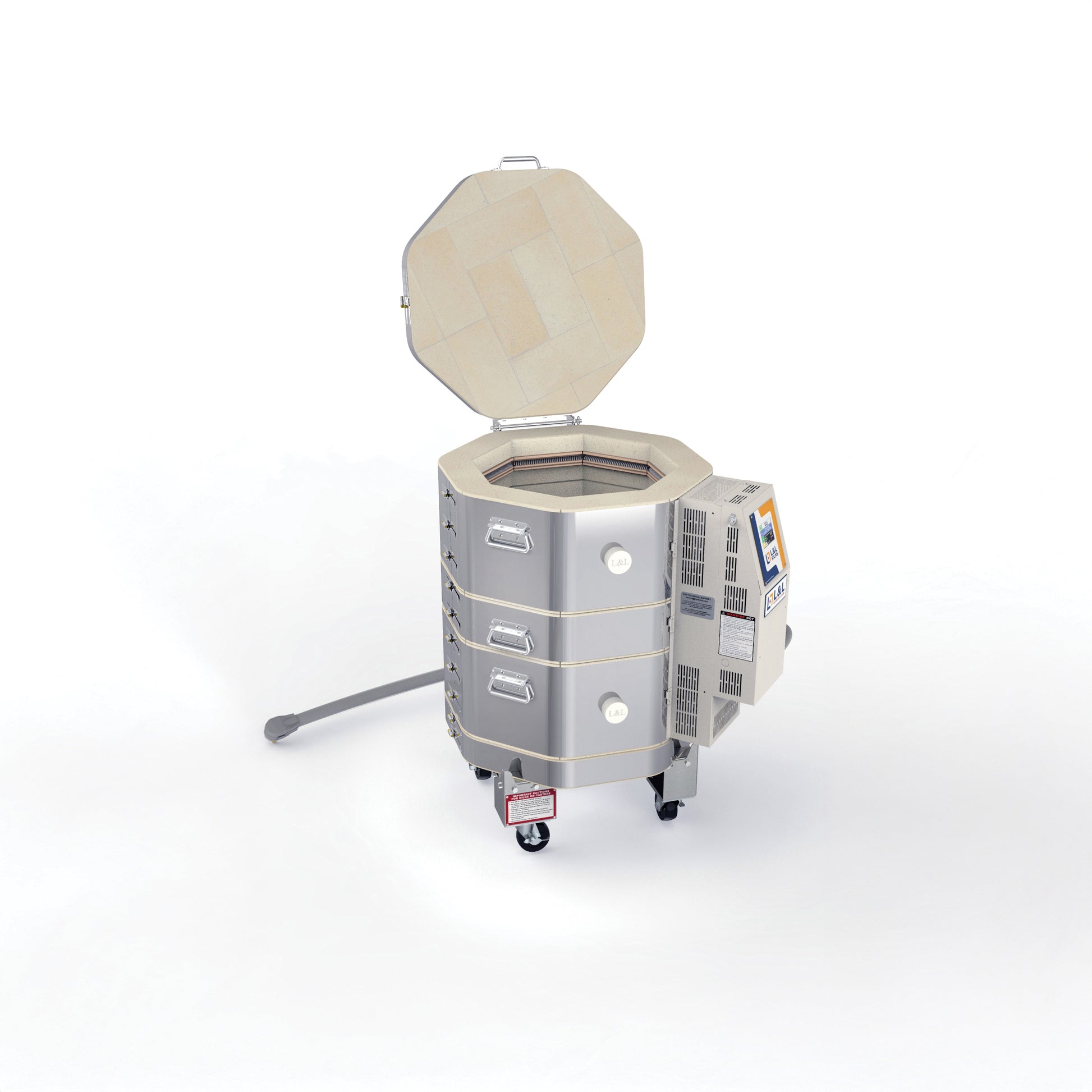

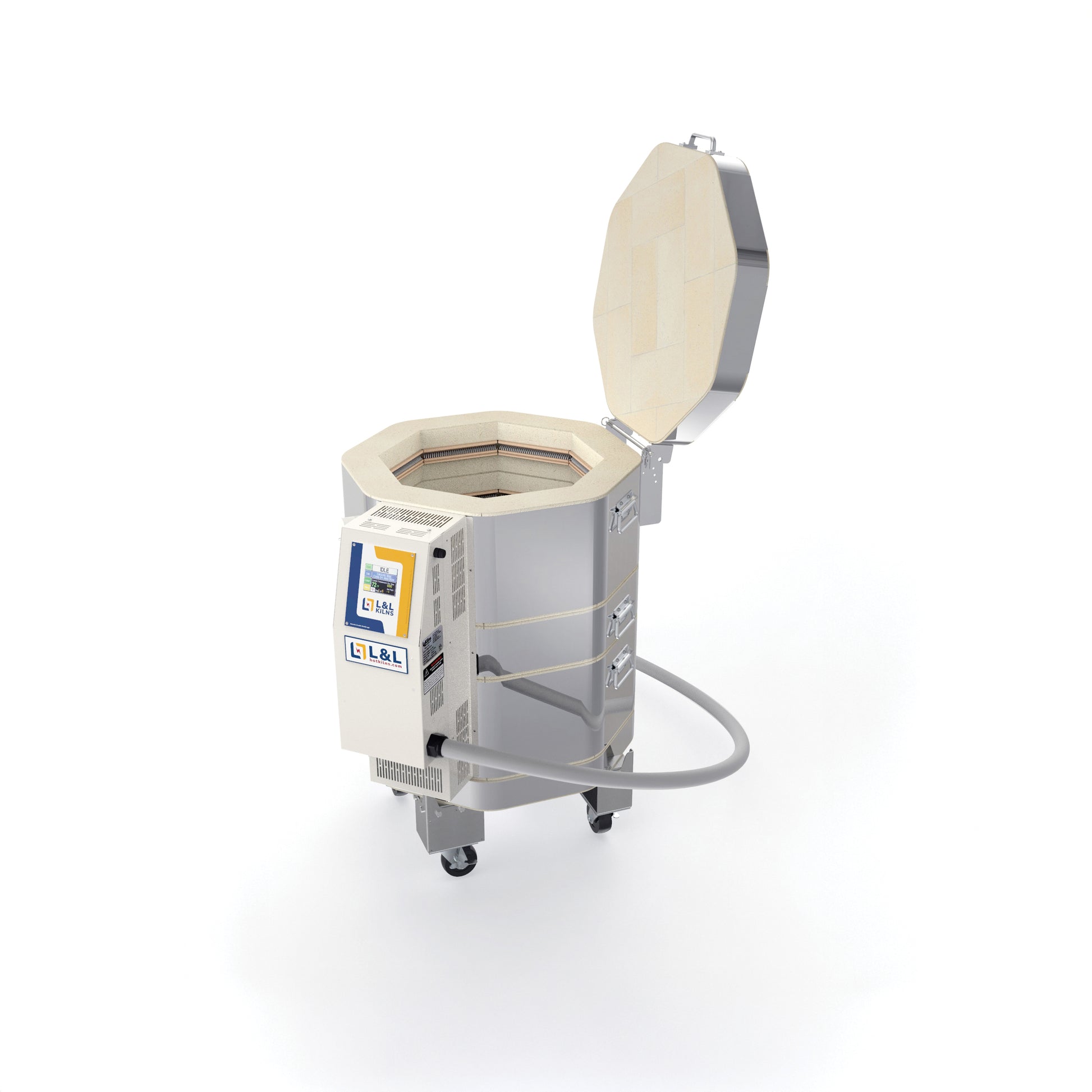

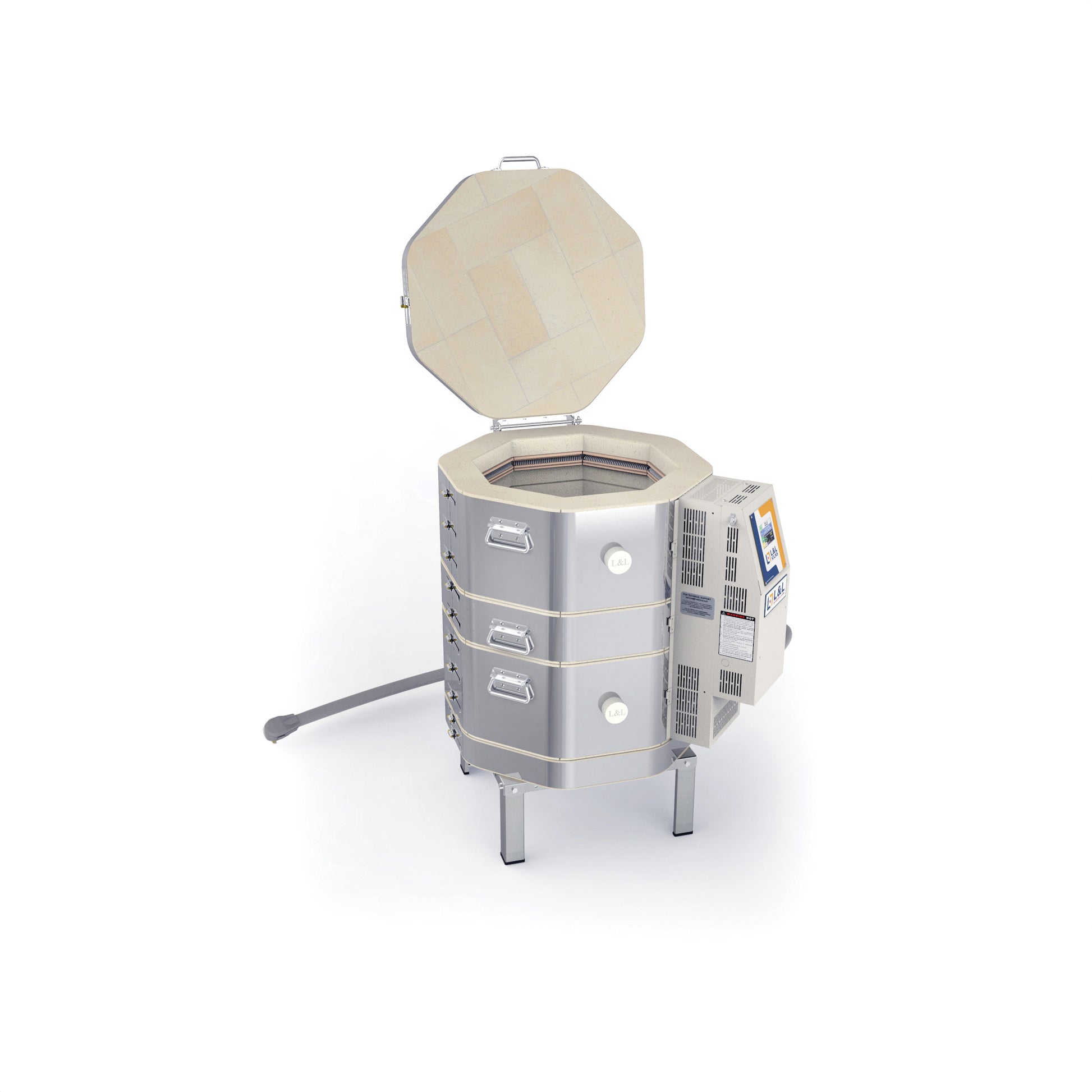

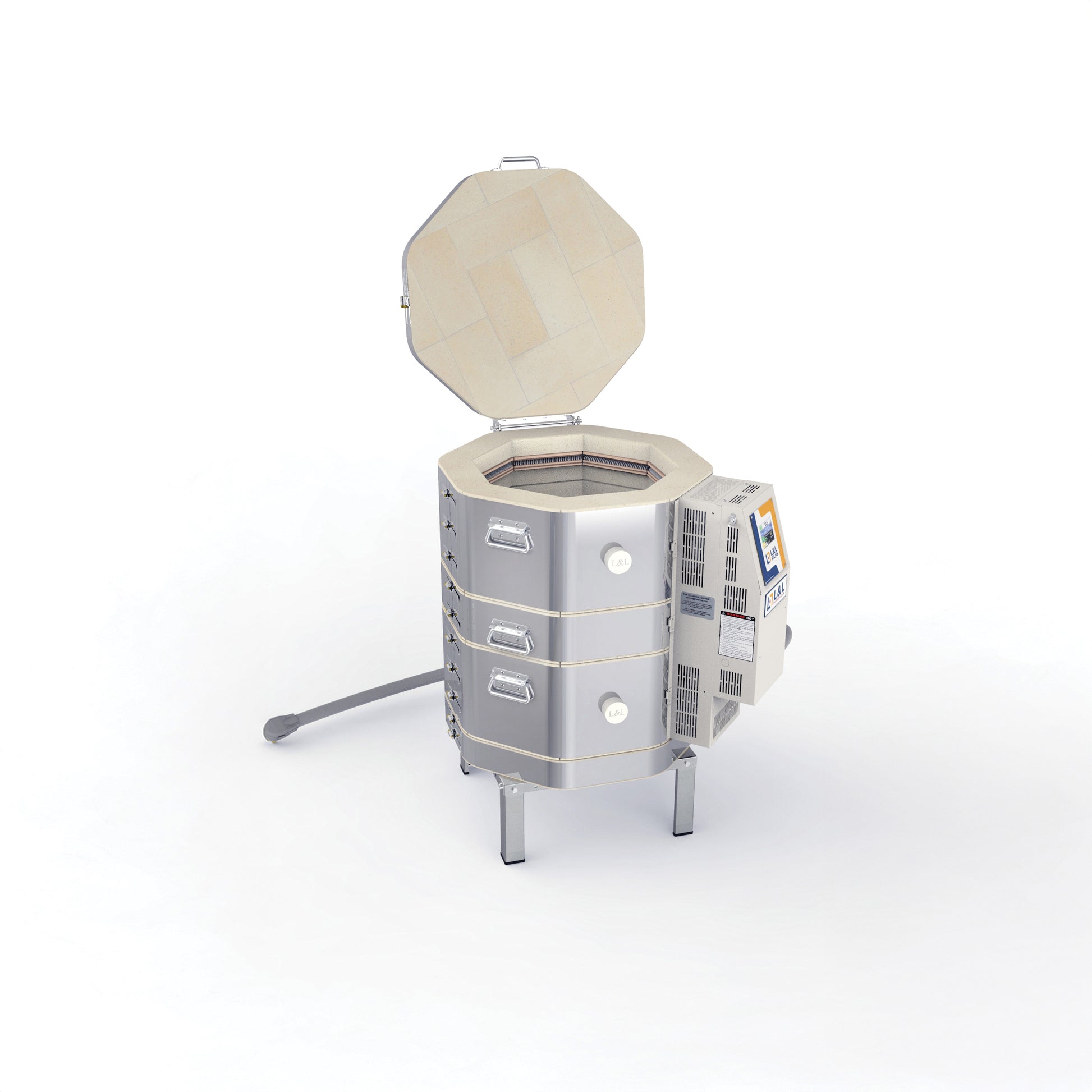

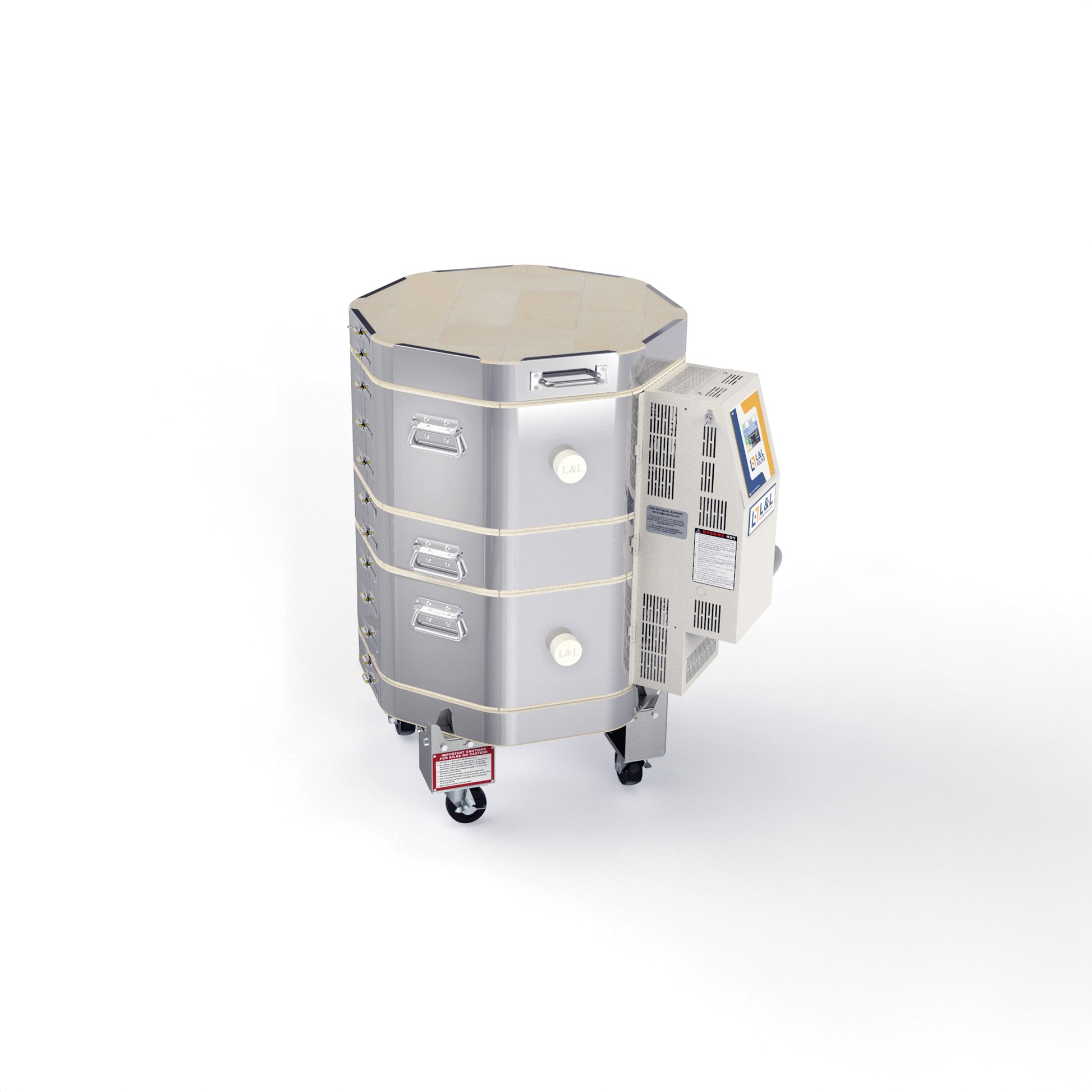

Model e18M-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 22.5" high (3.2 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

Insulation: 3" K23 Firebrick

Sections: Two 9" high sections & One 4.5" high sections

Inside Dimensions: 16.50" Diameter x 22.50" High (41.91 cm Diameter x 57.15 cm High)

Outside Dimensions: 28.00" Wide x 30.00" Deep x 60.00" High (71.12 cm Wide x 76.2 cm Deep x 152.4 cm High)

Weight: 210lbs (95 kg)

If not in stock lead time can vary between 10-12weeks
