E18S-3: Easy Fire Kiln

• KEY SPECS

  • Small (3.2 cubic feet)
  • Genesis Multi-Zone Touchscreen Control
  • Cone 10, 2350F, 1290C

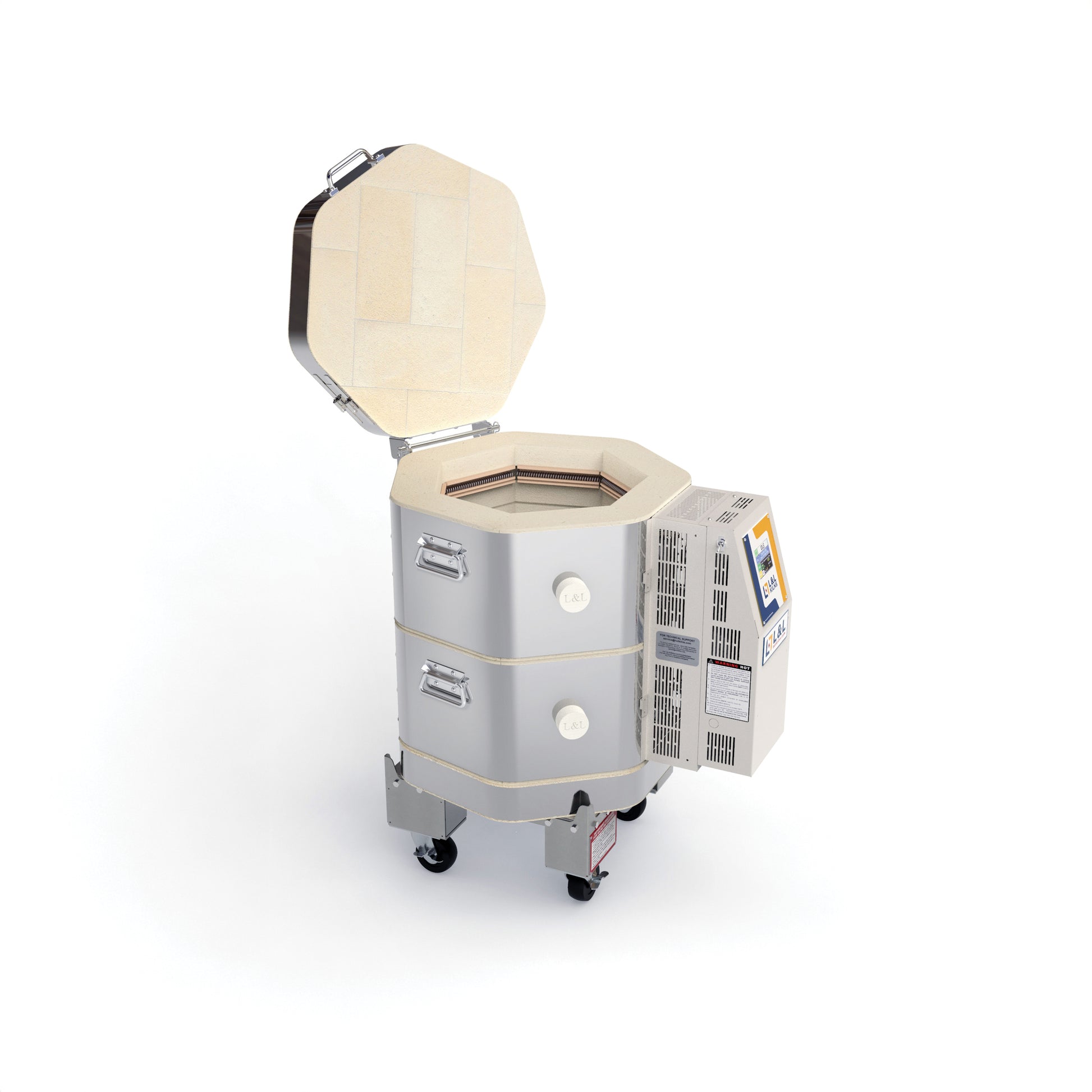

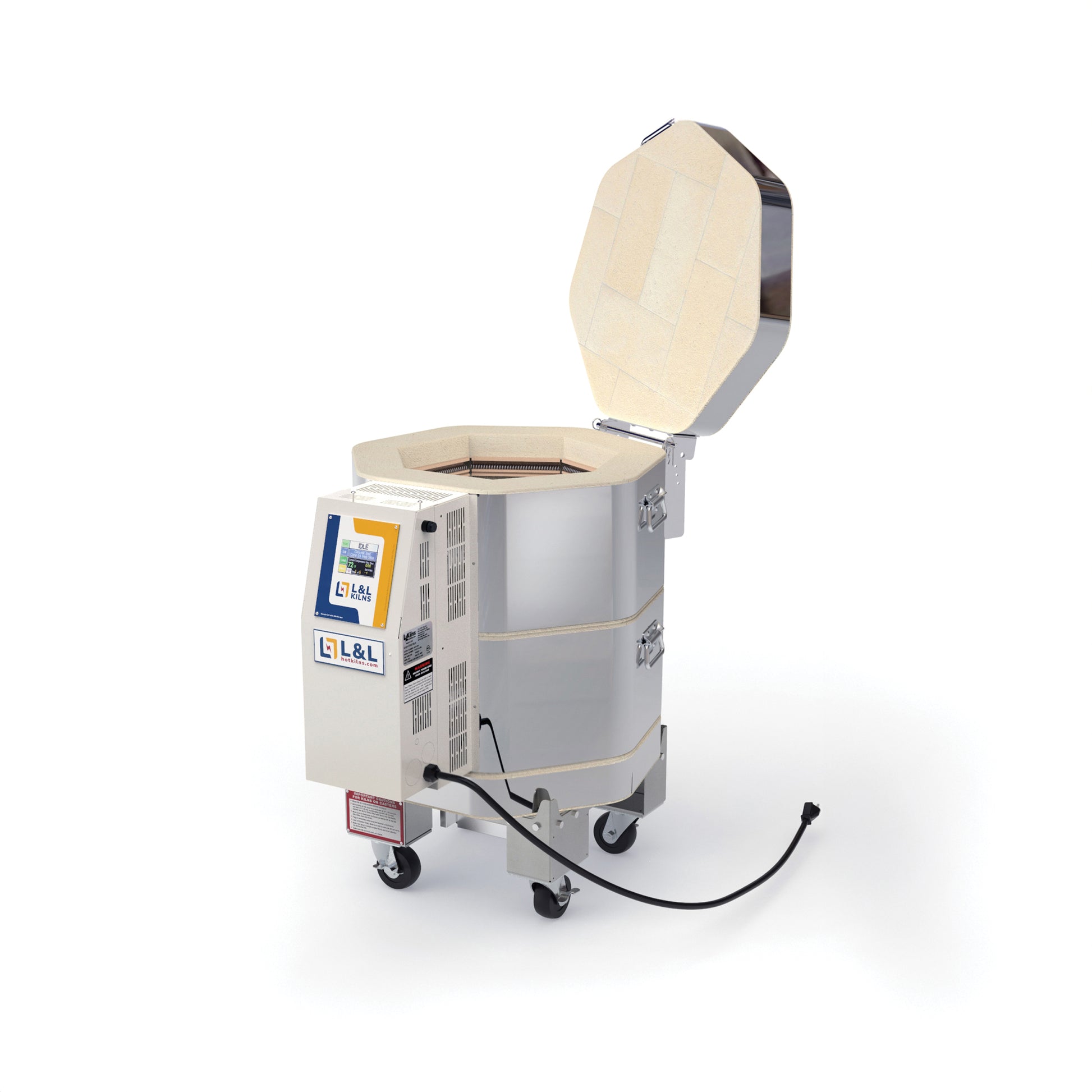

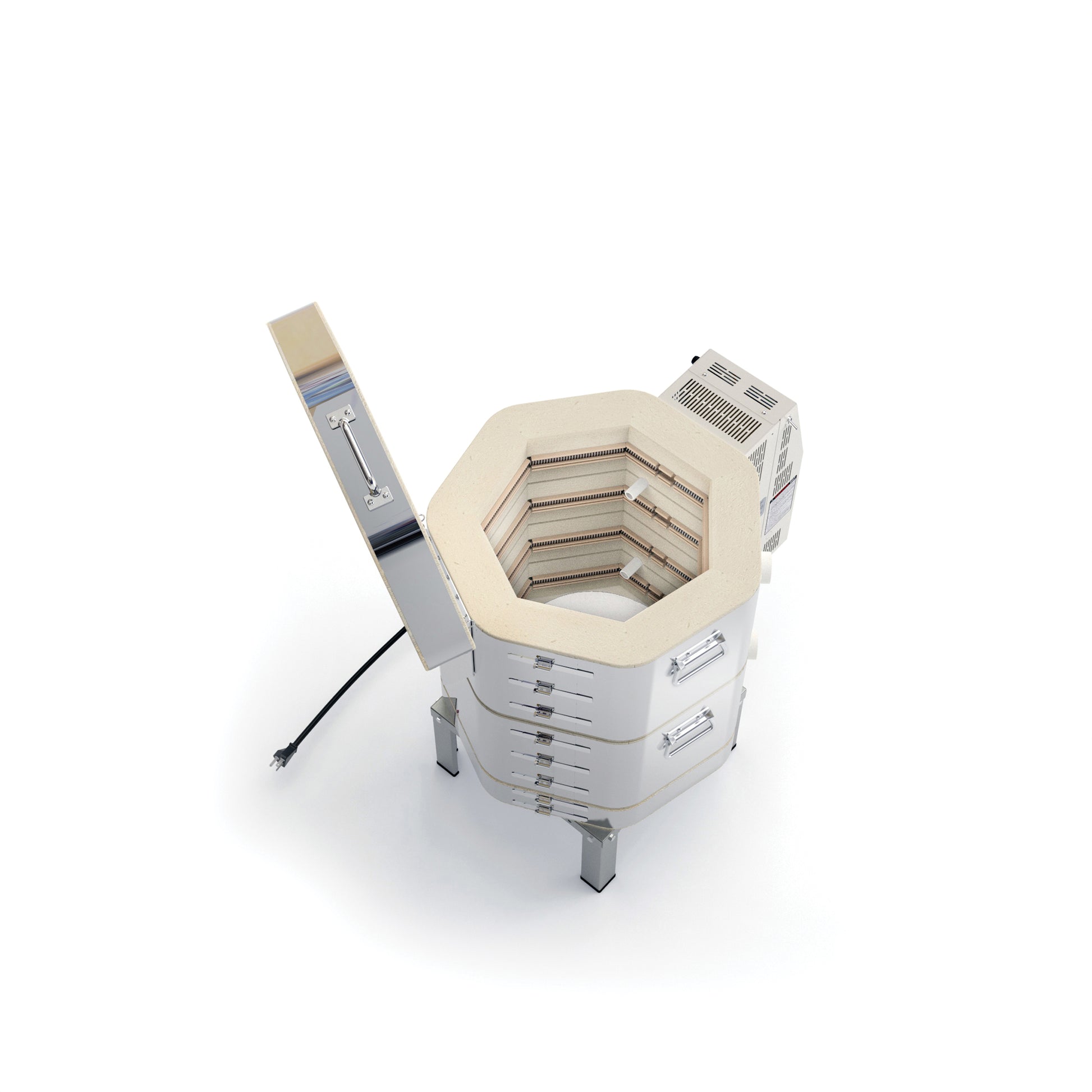

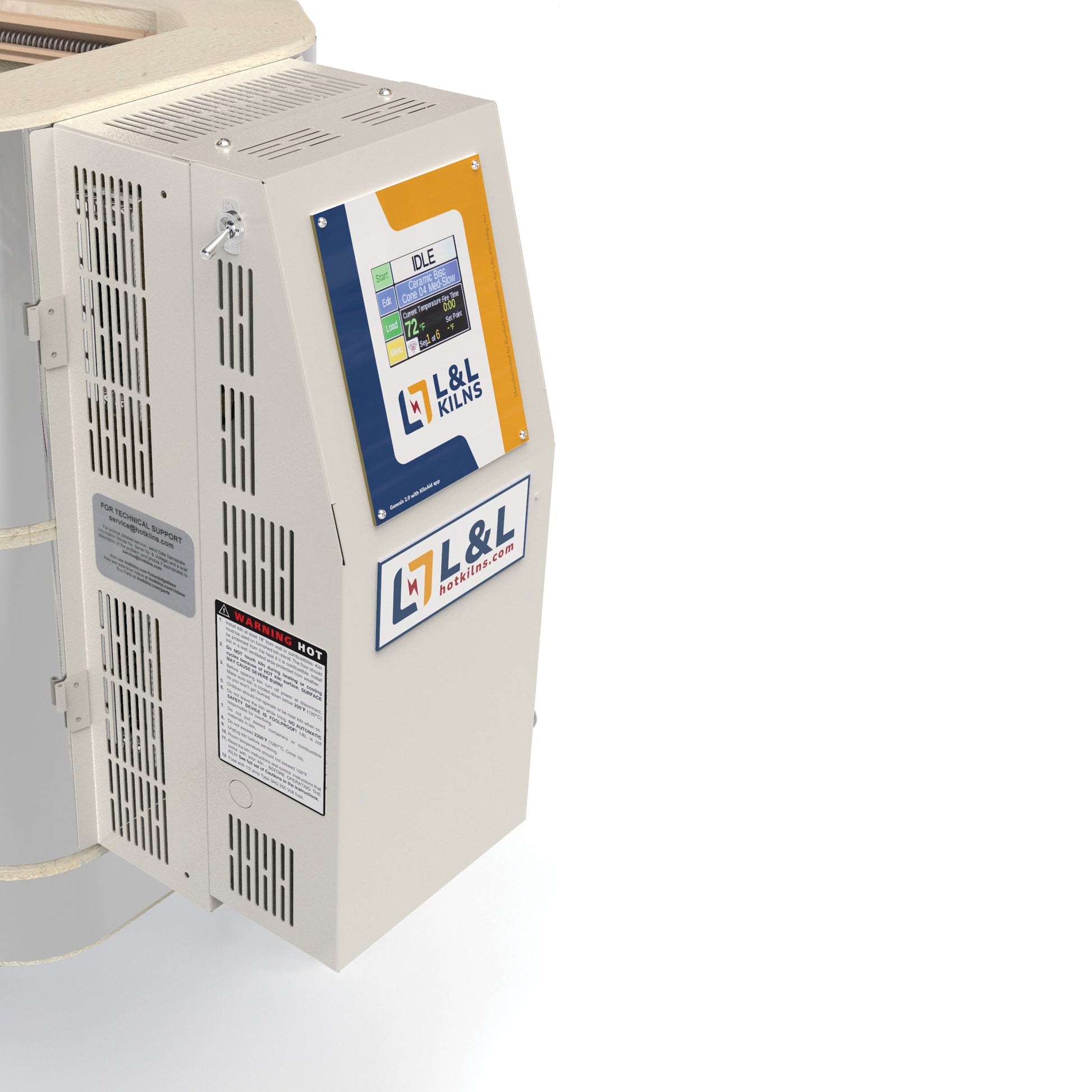

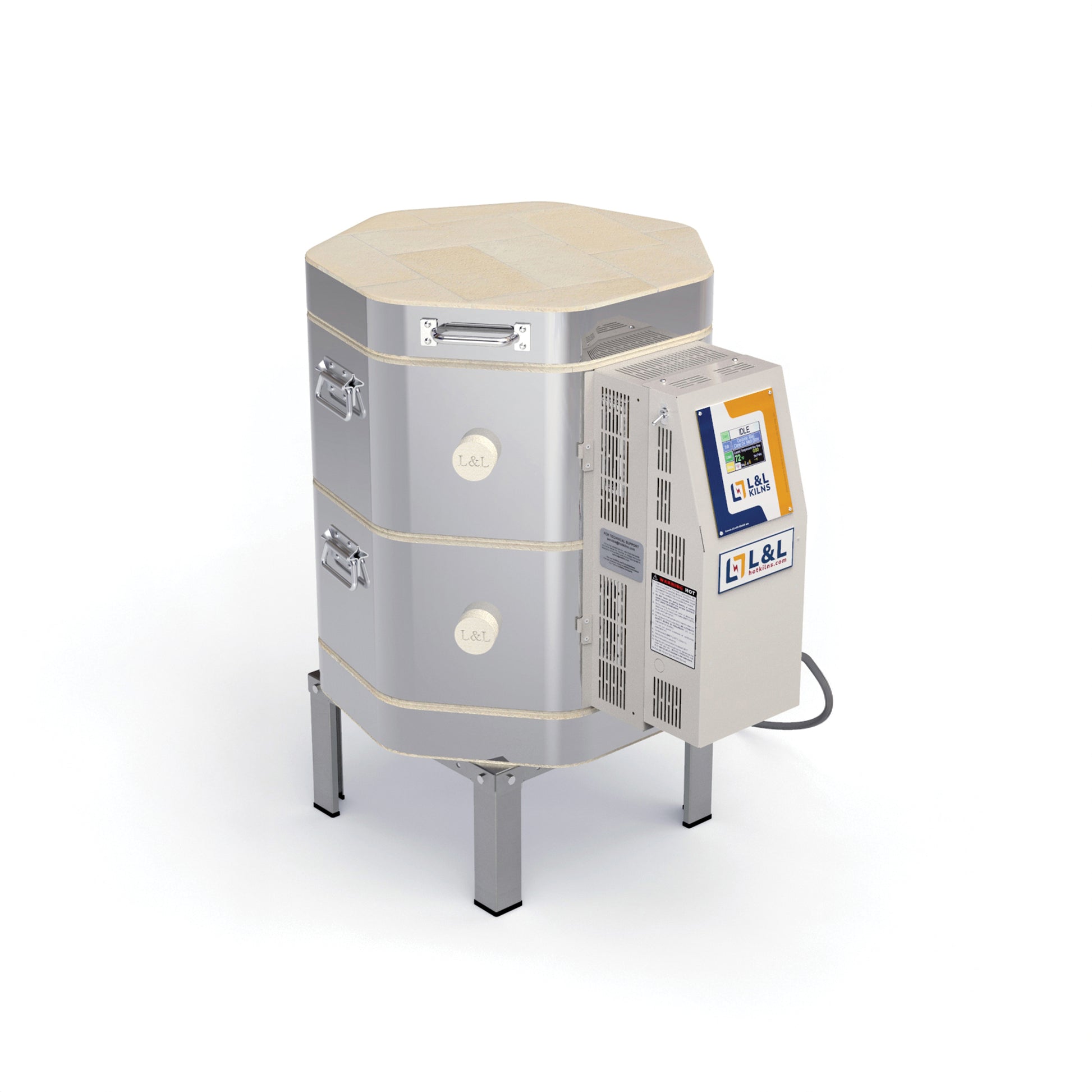

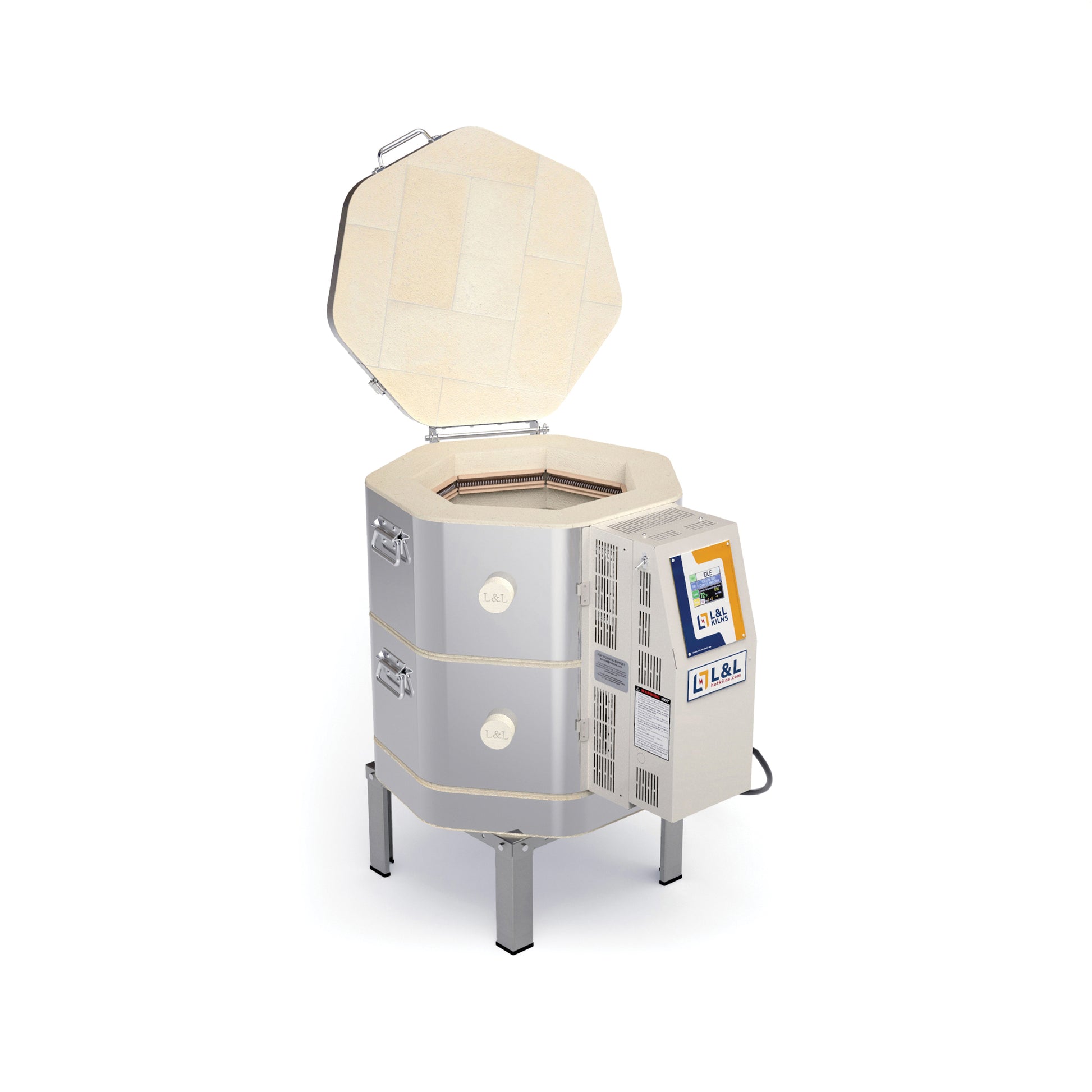

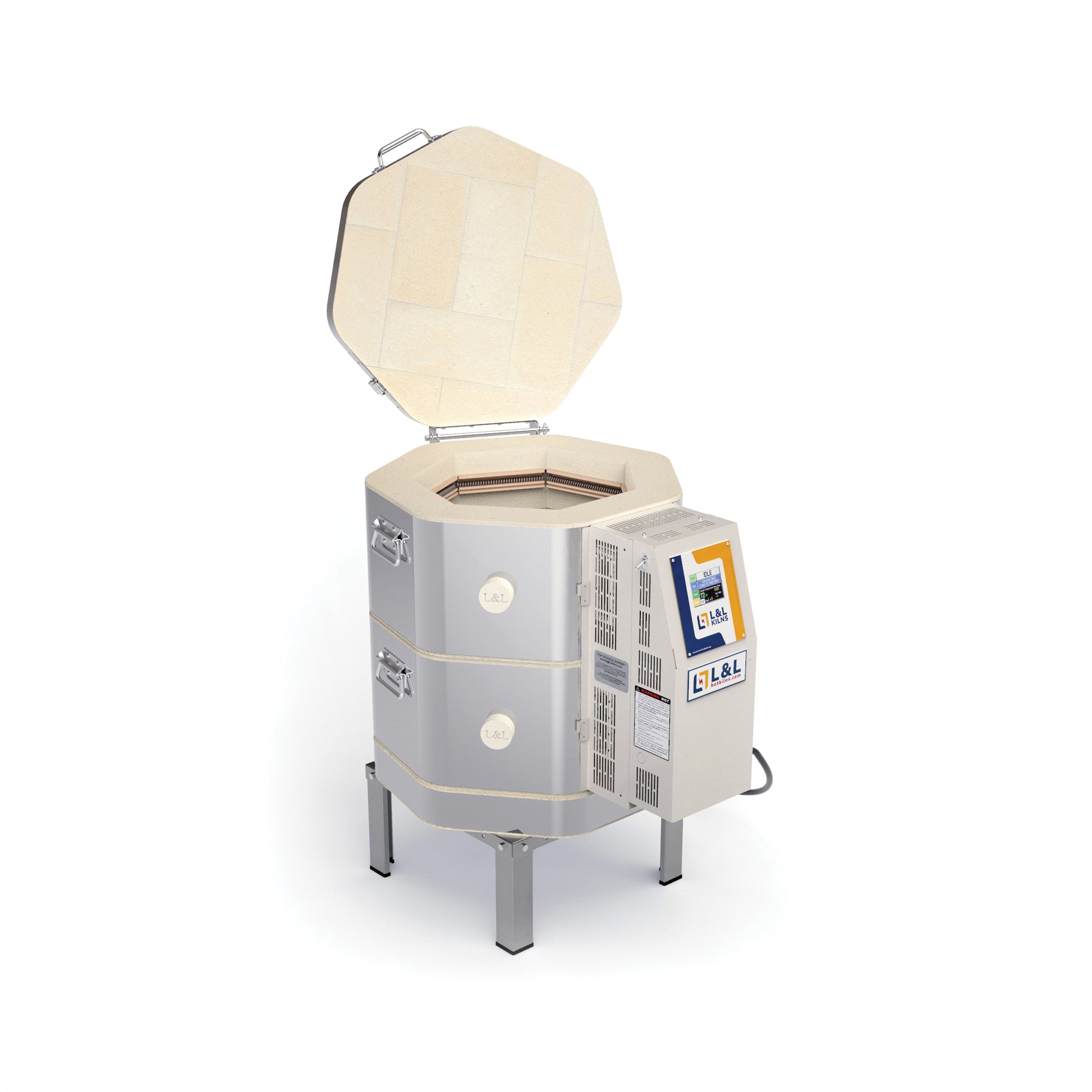

Model e18S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen controlmounted in an easy-open cool-firing piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, thermocouple protection tubes, a strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 18" high (2.5 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages. There are two thermocouples. No charge for 3-phase versions.

Insulation: 3" K23 Firebrick

Sections: Two 9" high sections

Inside Dimensions: 16.50" Diameter x 18.50" High (41.91 cm Diameter x 45.72 cm High)

Outside Dimensions: 28.00" Wide x 30.00" Deep x 55.00" High (71.12 cm Wide x 76.2 cm Deep x 139.7 cm High)

Weight: 185lbs (84 kg)

If not in stock lead time can vary between 10-12weeks
