E23S-3: Easy Fire Kiln

• KEY SPECS

  • Small ( 4.4 cubic feet)
  • Genesis Multi-Zone Touchscreen Control
  • Cone 10, 2350F, 1290C

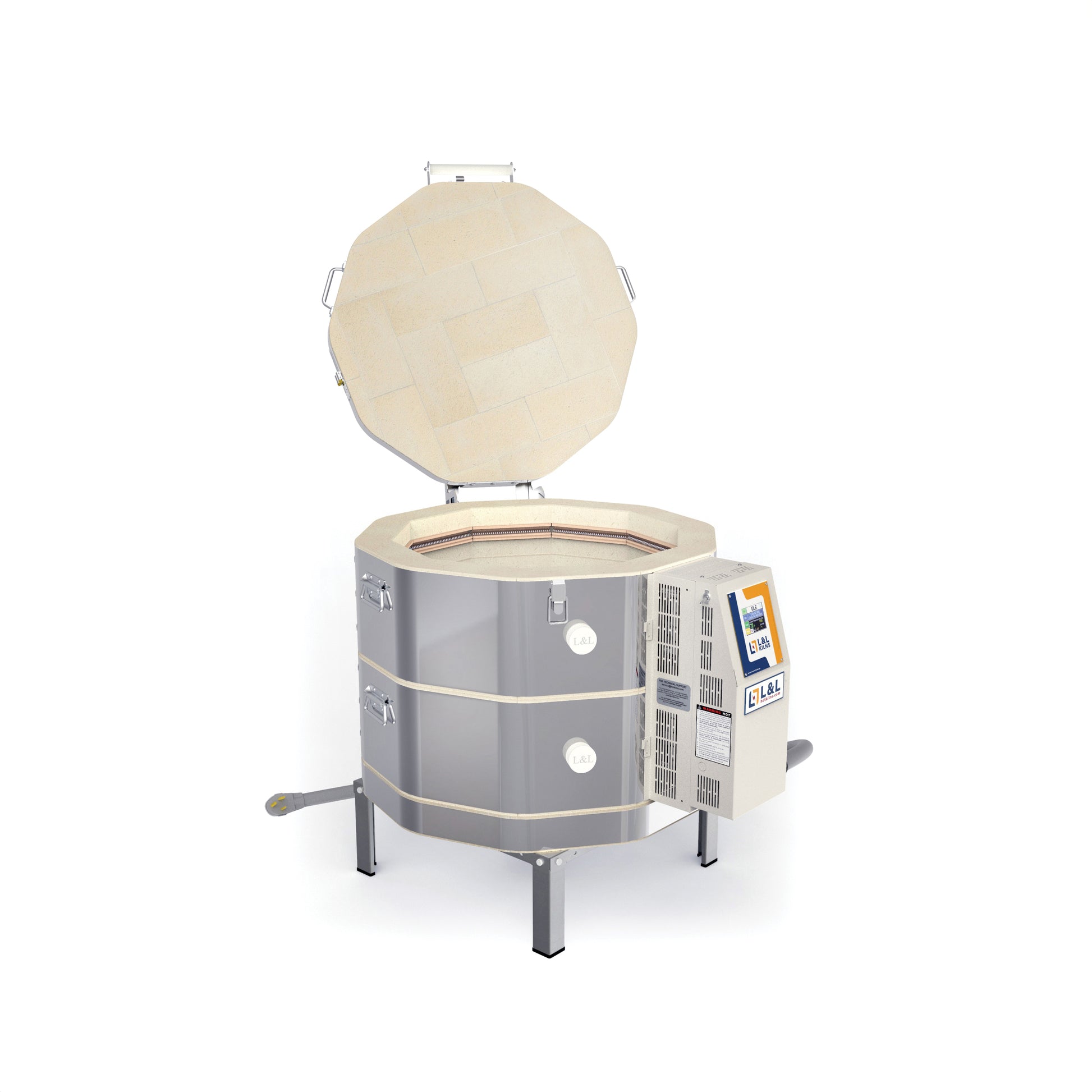

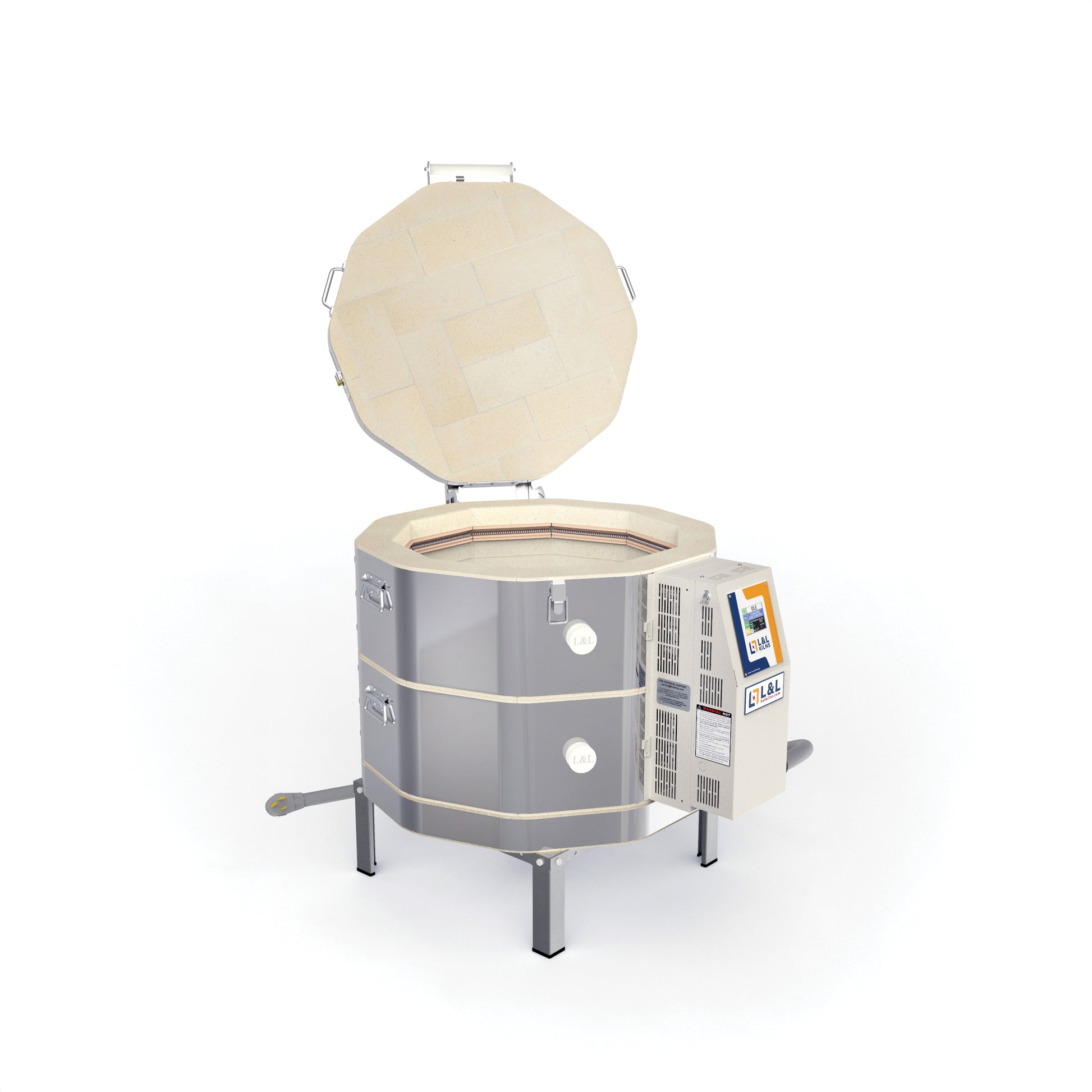

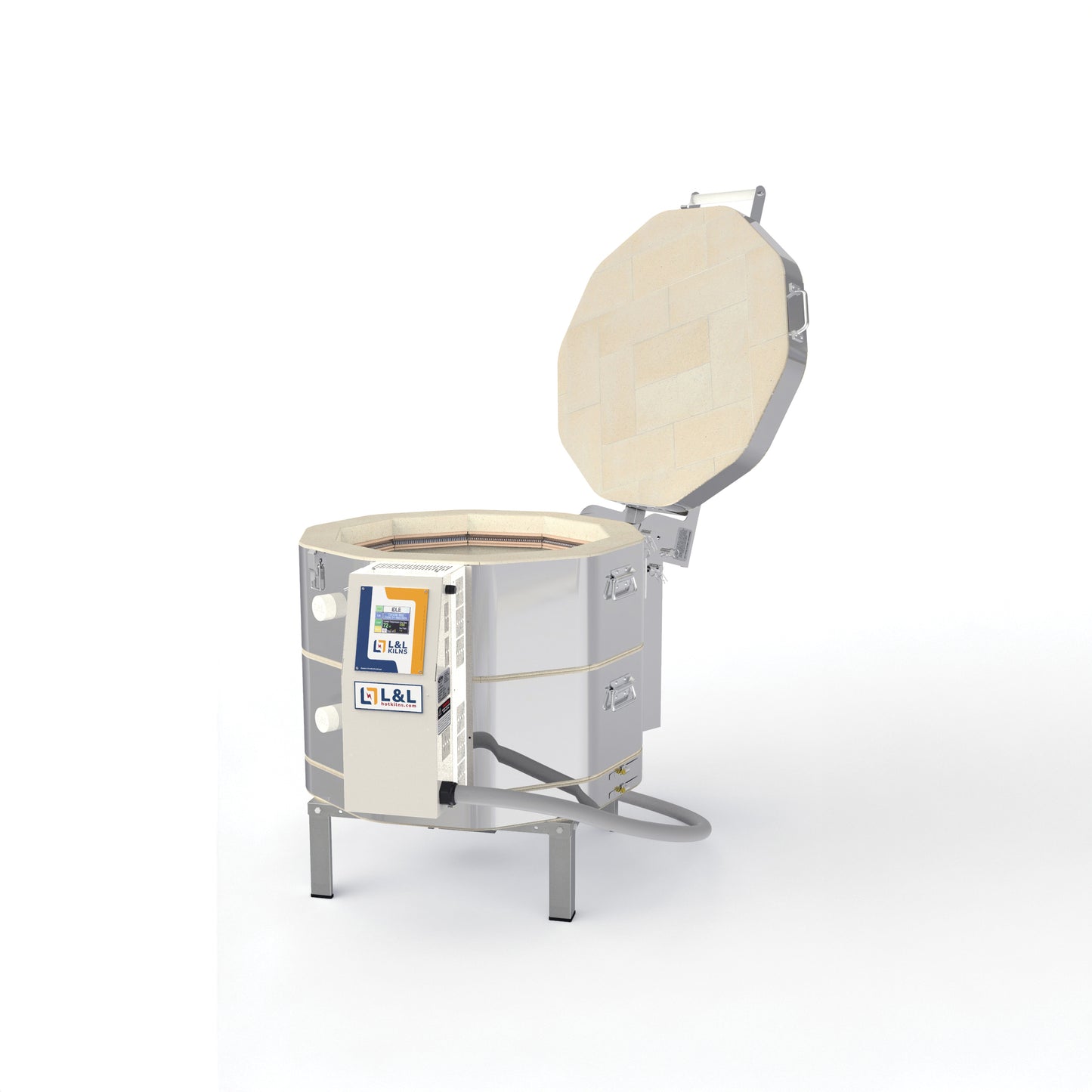

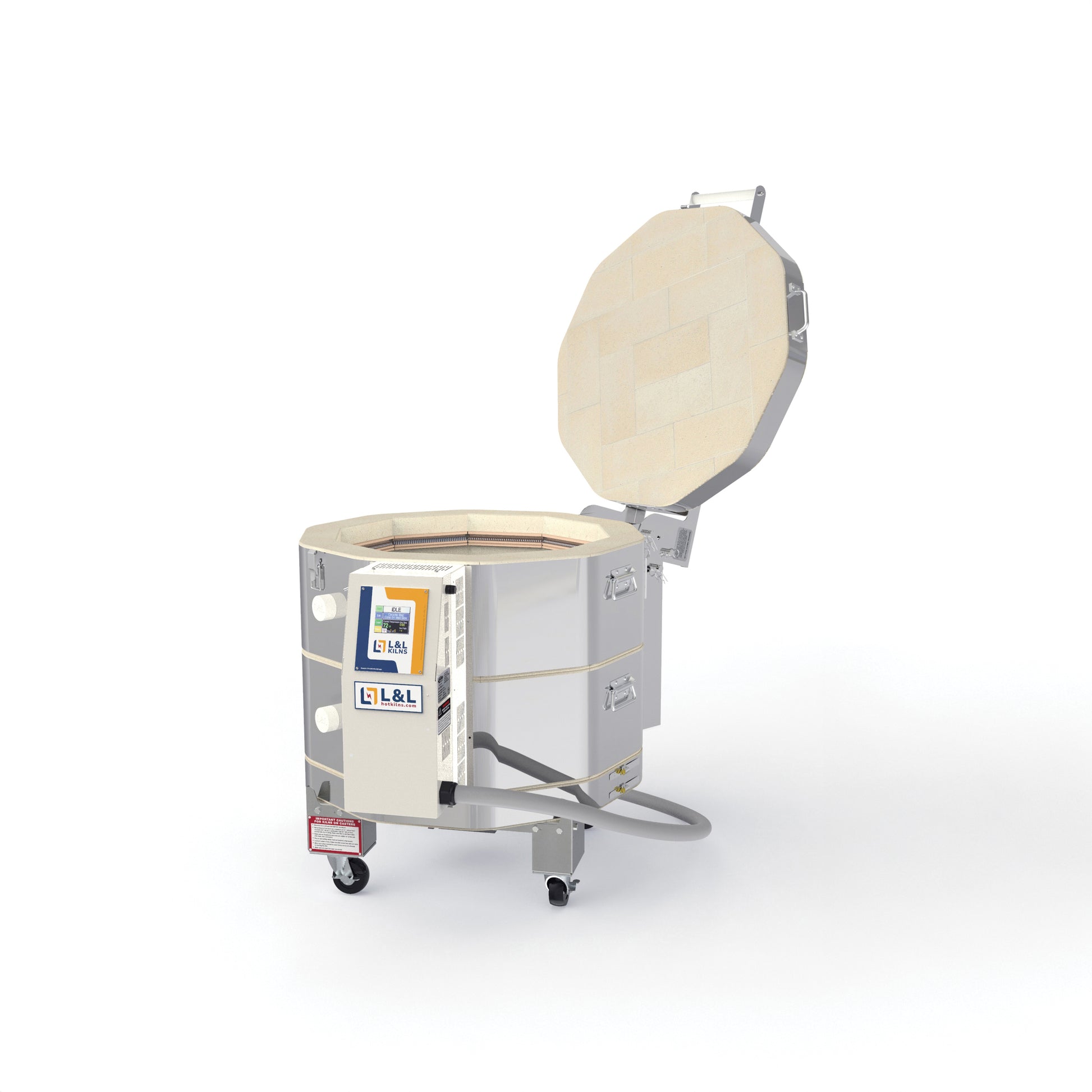

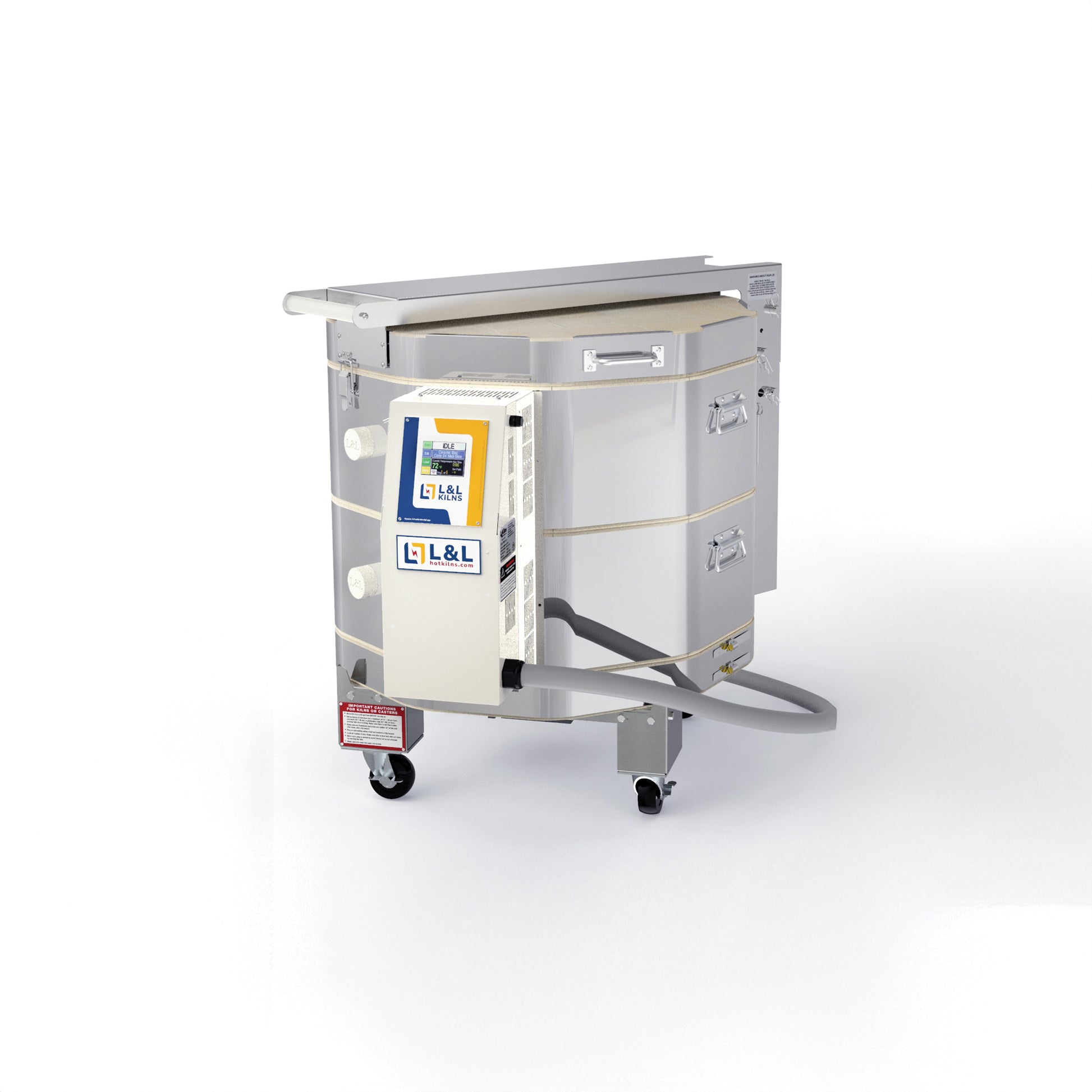

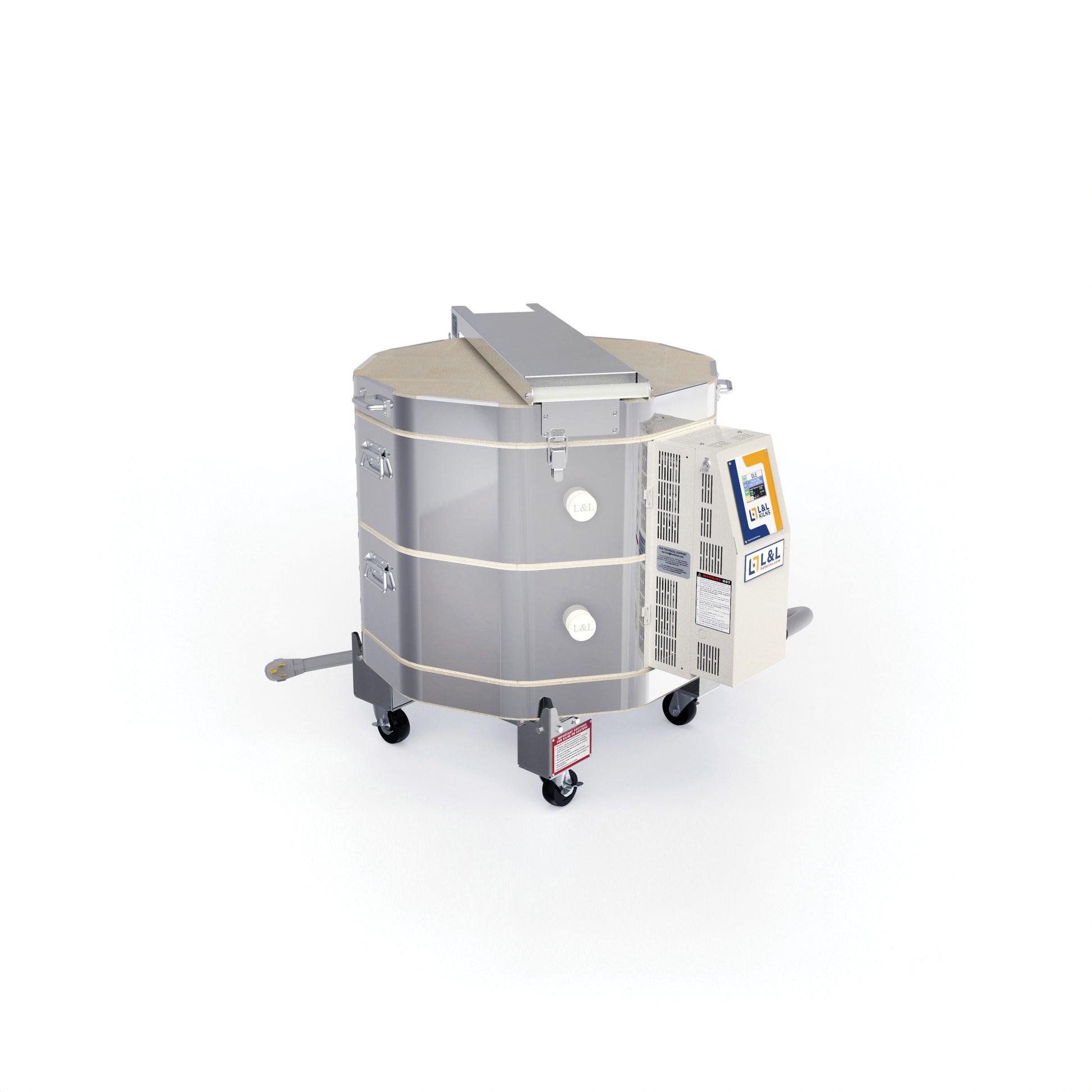

Model e23S-3 Easy-Fire Automatic Kiln with Multi-Program Two-Zoned Genesis Touchscreen control mounted in an easy-open, cool-firing, piggyback control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a strong solid-top stand, an easy-lift spring hinge, and solid peephole plugs. 22-3/8" diameter by 18" high (4.4 cubic feet). 3" K23 brick. NEMA 6-50 single phase or 15-50 three-phase 6-foot power cord included. There are two thermocouples. No charge for 3-phase versions. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.

Insulation: 3" K23 Firebrick

Sections: Two 9" high sections

Inside Dimensions: 22.30" Diameter x 18.00" High (56.642 cm Diameter x 45.72 cm High)

Outside Dimensions: 30.00" Wide x 40.00" Deep x 59.00" High (76.2 cm Wide x 101.6 cm Deep x 149.86 cm High)

Weight: 260lbs (118 kg)

If not in stock lead time can vary between 10-12weeks
