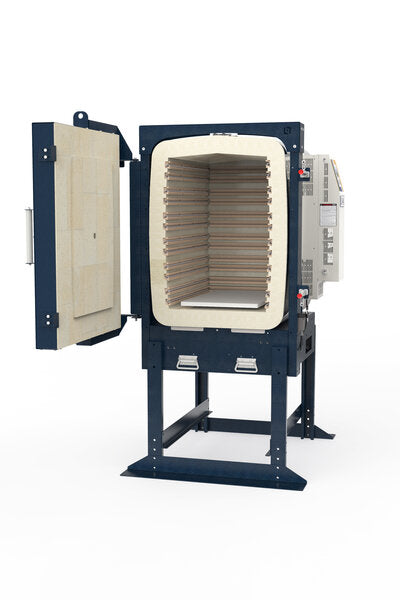

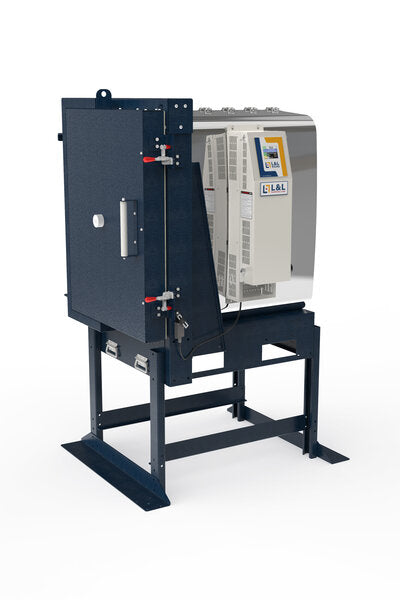

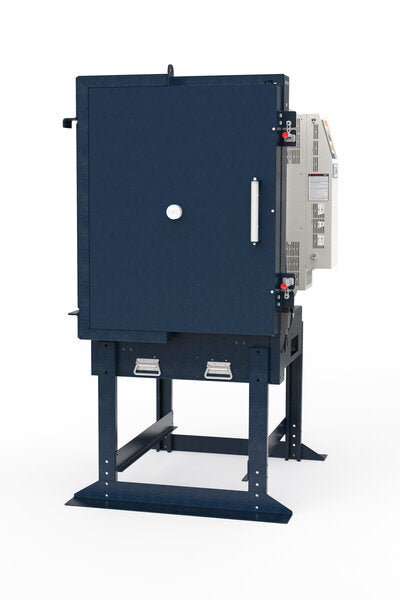

EFL1626 Front Loading Kiln

• KEY SPECS

  • Large( 6.6 cubic feet)
  • Genesis Multi-Zone Touchscreen Control
  • Cone 10, 2350F, 1290C


Model eFL1626 Front-Loading Kiln with Multi-Program Three-Zoned Genesis Touchscreen control, mounted in an easy-open, cool-firing, piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, protected thermocouples, a stand, and solid peephole plugs.  The sides and top are arched for super strength. The base, door, and door frame are formed from precision sheet metal to be lightweight and strong. These kilns ship by common carrier, and are inexpensive to buy, install, and maintain. 17"W by 26"H by 26" D (6.6 cubic feet). 3" K23 brick. All models are rated to Cone 10. *A special model eFL1626-208-X is rated at Cone 5 but has 48.0 amps and a 60 amp fuse. Plugs on US Models only: 6-50P on single phase and 15-50P on three phase for all eFL1626 models except the standard eFL1626-208 1 Phase, which needs to be direct wired. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed to UL499 in the USA & Canada. Note: Casters are optional.

eFL Kilns include Genesis Touchscreen Multi-Zone Control

Insulation: 3" K23 Firebrick on sides, back, bottom and top. 3" K23 plus 1" microporous insulation in door to compensate for having no elements in door

Sections: One section

Inside Dimensions: 17.00" Wide x 26.00" Deep x 26" High (66.04 cm Wide x 66.04 cm Deep x 88.9 cm High)

Outside Dimensions: 45.00" Wide x 39.00" Deep x 72.00" High (91.44 cm Wide x 99.06 cm Deep x 160.02 cm High)

Weight: 545lbs (354 kg)

If not in stock lead time can vary between 10-12weeks
